Multiplexers and Demultiplexers in CSA
- Combinational circuits are a fundamental building block in digital electronics.
- They perform logical and mathematical operations based on the input values without any memory elements.
- Multiplexers and demultiplexers are two essential components of combinational circuits, each serving a distinct purpose in data routing and control.
Multiplexers
- A multiplexer (MUX) is a combinational circuit that selects one of several input lines and forwards it to a single output line.
- This selection is based on the binary value of control inputs.
- Multiplexers are commonly referred to as "MUX" and are used in various applications, including data routing, signal switching, and memory addressing.

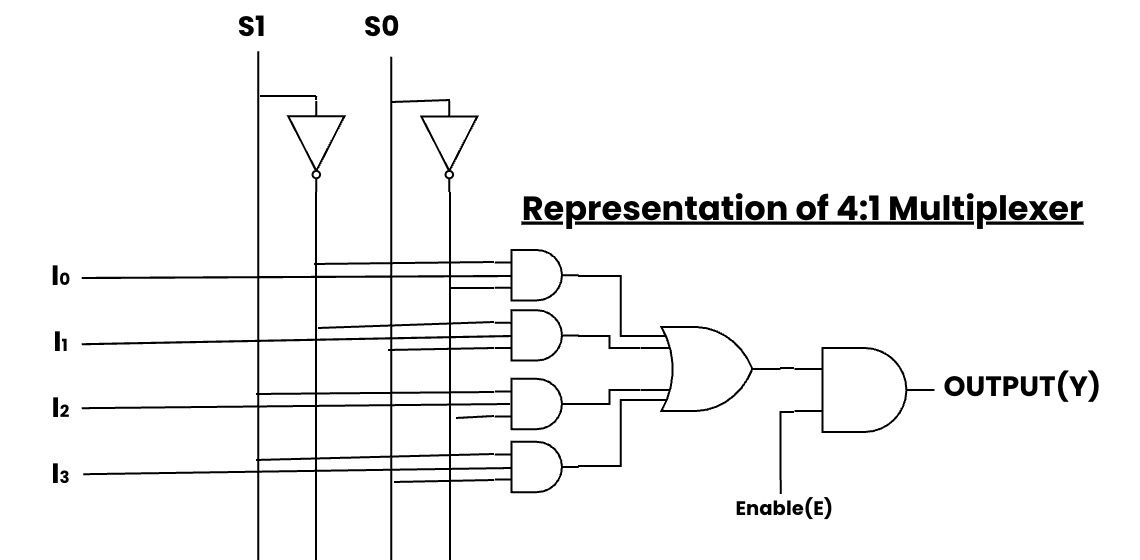

Basic Multiplexer

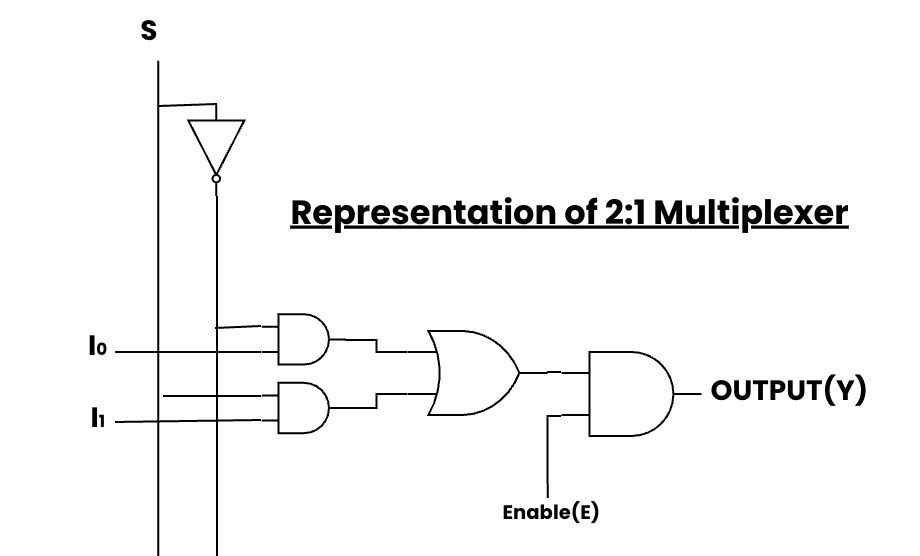

- A basic multiplexer, often denoted as a 2:1 MUX, has two data inputs (D0 and D1), one output (Y), and one control input (S).
- The control input S determines which data input is transmitted to the output.
- The truth table for a 2:1 MUX is as follows:

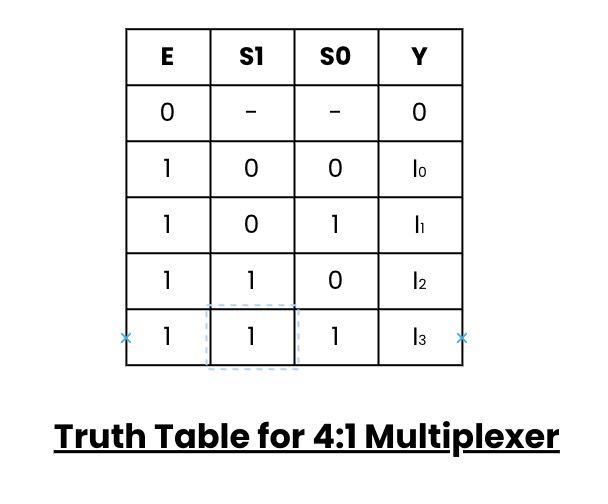

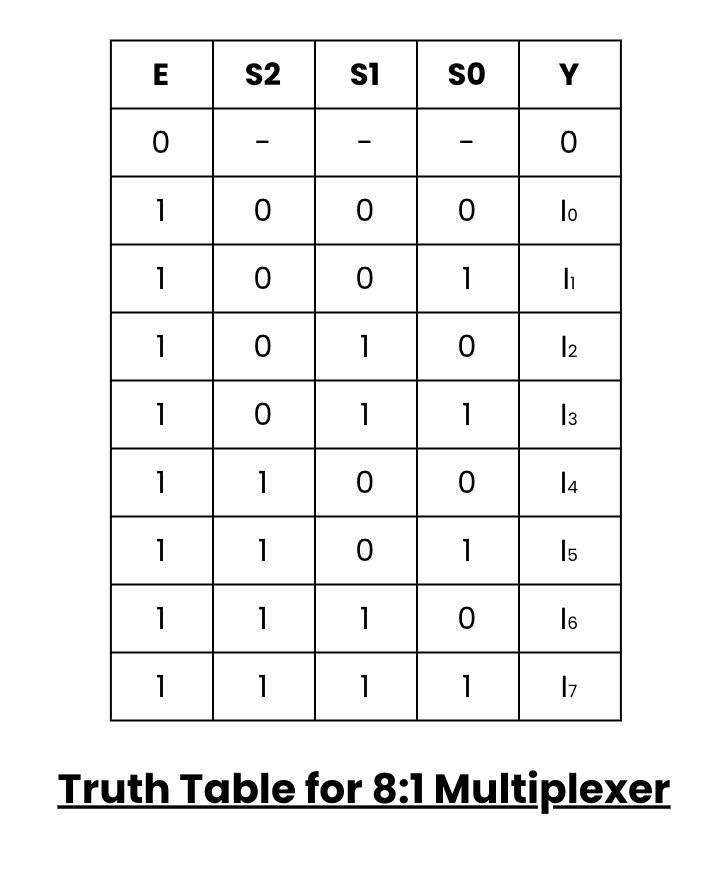

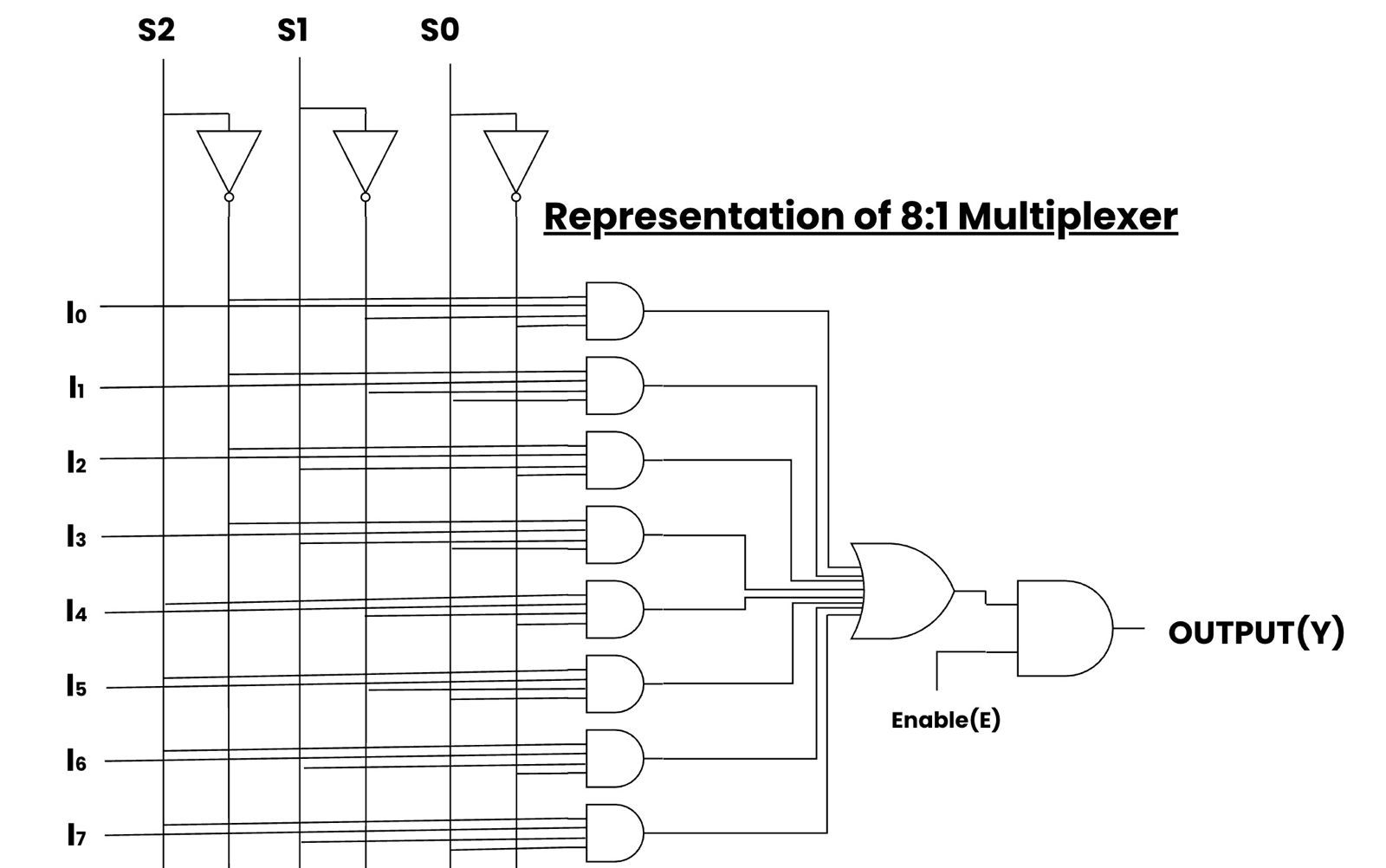

Example
- Suppose you want to select between two video sources to display on a screen.
- You can use a 2:1 MUX, where S determines whether to display the input from D0 or D1.
- This allows you to switch between two video sources with a single control signal.
Demultiplexers
- Demultiplexer (DEMUX) is the reverse process of multiplexer.
- It takes an input and takes it to one of several possible values depending on the binary value of the control input.
- Demultiplexers are used to distribute data or signals from one source to multiple destinations.

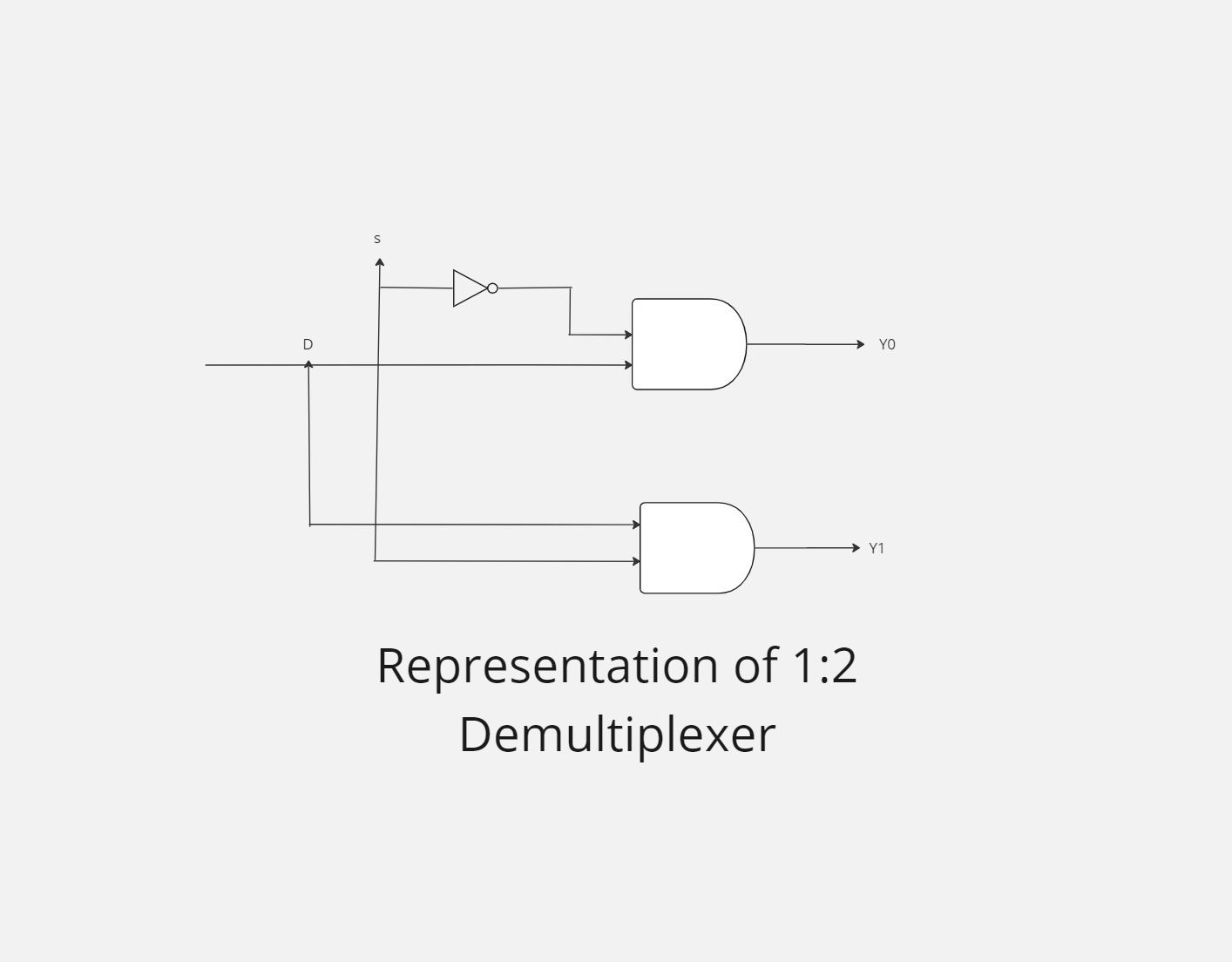

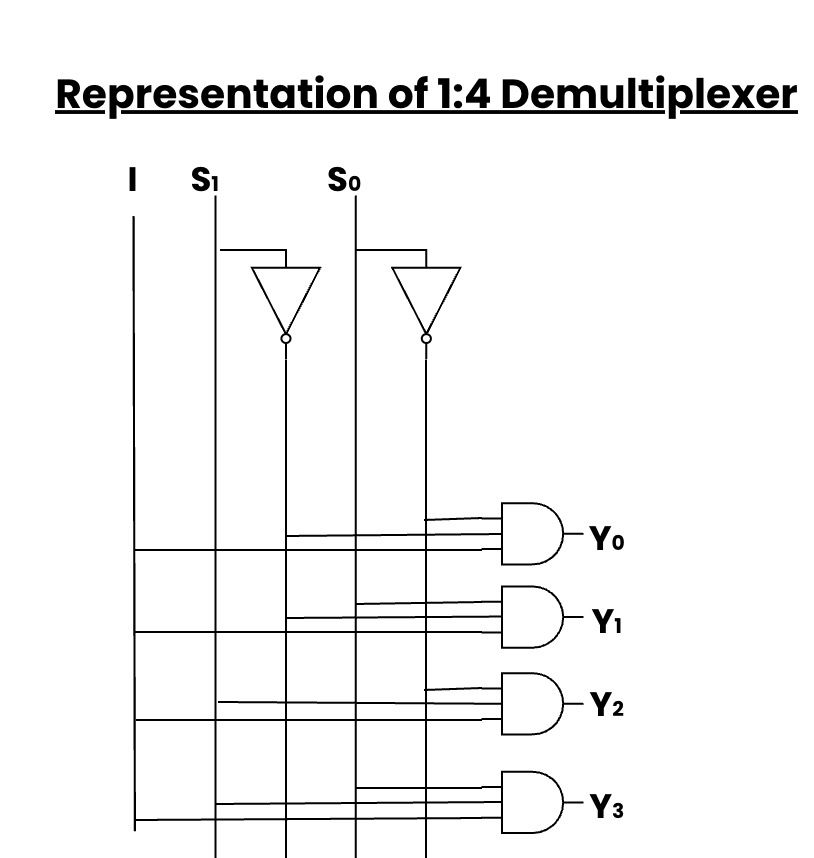

Basic Demultiplexer
- A basic demultiplexer, often denoted as a 1:2 DEMUX, has one input (X), two outputs (Y0 and Y1), and one control input (S).
- The control input S determines which output receives the input signal.

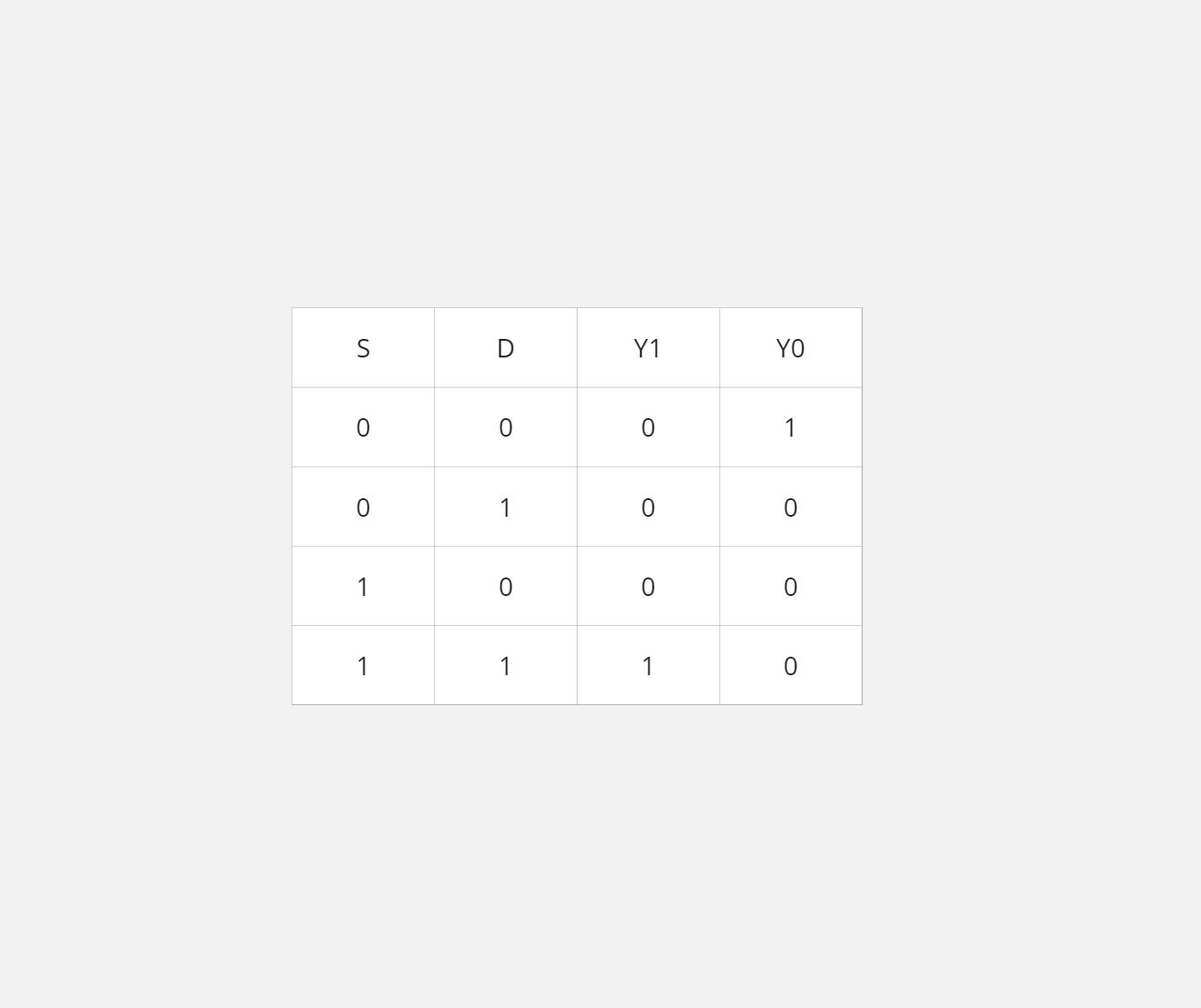

- The truth table for a 1:2 DEMUX is as follows:
Truth Table for 1:2 Demultiplexer
Example
- Imagine you have a digital communication system that needs to transmit data to one of two destinations based on a control signal.
- You can use a 1:2 DEMUX, where the control input S determines whether to send the data to destination Y0 or Y1.
- This setup allows you to switch between two receiving destinations efficiently.
Multiplexer Applications
Data Routing
Multiplexers are used in networking and communication systems to route data from multiple sources to a single channel.
Memory Addressing
In computer memory systems, multiplexers are employed to select specific memory locations based on the address lines.
Signal Switching
Audio and video signals can be switched using multiplexers to choose between different inputs.
Demultiplexer Applications
Data Distribution
Demultiplexers are used in communication systems to distribute data from a single source to multiple receivers.
Memory De-multiplexing
In computer memory systems, demultiplexers help in decoding memory addresses and selecting specific memory banks.
Display Control
In display systems, demultiplexers can control which part of the screen receives the input signal, enabling features like picture-in-picture.
Conclusion
Multiplexers and demultiplexers play crucial roles in digital electronics, enabling efficient data routing and control in various applications.
